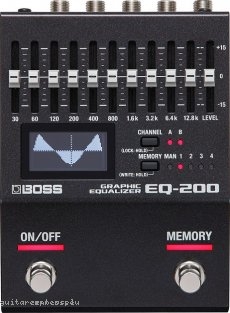

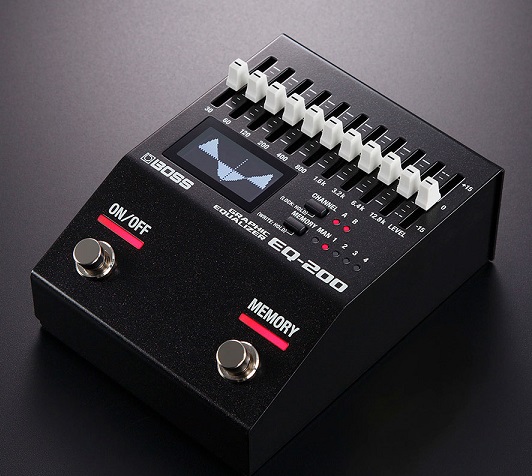

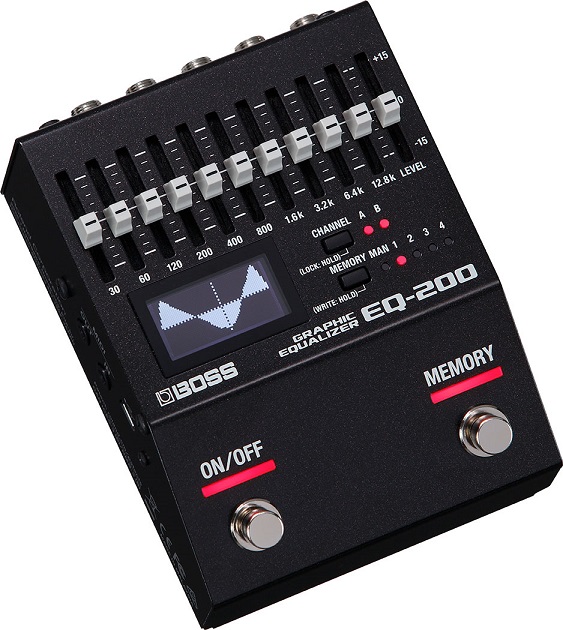

Boss EQ-200 Graphic Equalizer
|
|
|
|
|
|
|
|
|
Boss EQ-200 Graphic Equalizer
- Sampling Frequency: 96 kHz
- AD/DA Conversion: 32 bits
- Processing: 32-bit floating point
- Memory: 127 + Manual
- Nominal Input Level: INPUT A/MONO, B: -10 dBu
- Maximum Input Level: INPUT A/MONO, B: +7 dBu
- Input Impedance: INPUT A/MONO, B: 2 M ohm
- Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
- Maximum Output Level: OUTPUT A/MONO, B: +7 dBu
- Output Impedance: OUTPUT A/MONO, B: 1 k ohms
- Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
- Bypass: Buffered bypass
- Controls: ON/OFF switch, MEMORY switch, 30--12.8 k sliders, LEVEL slider,A/B button, MEMORY button
- Display: Graphic LCD (64 x 32 dots, backlit LCD)
- Indicator: A/B indicator, MEMORY (MAN, 1--4) indicators

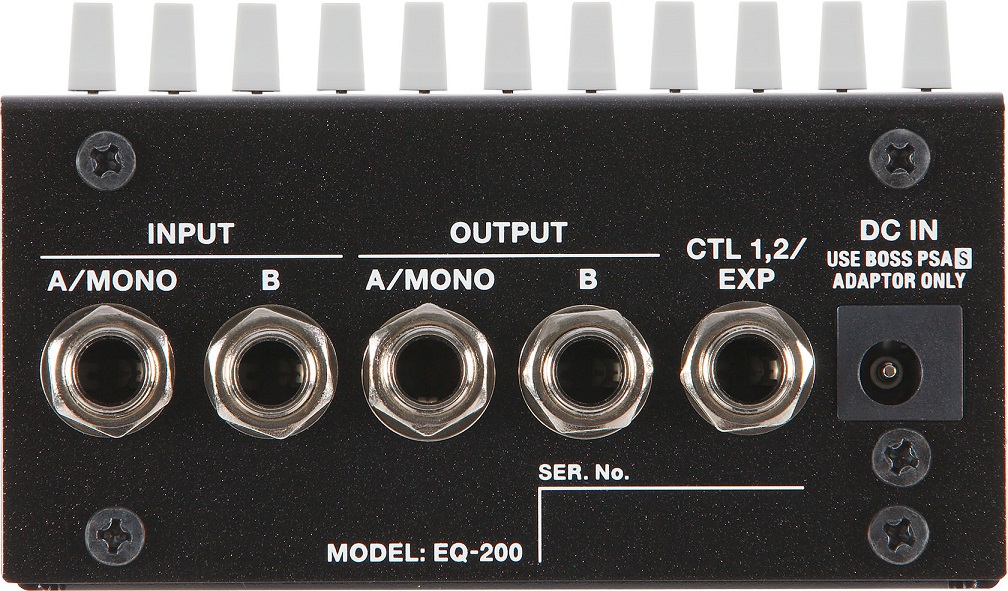

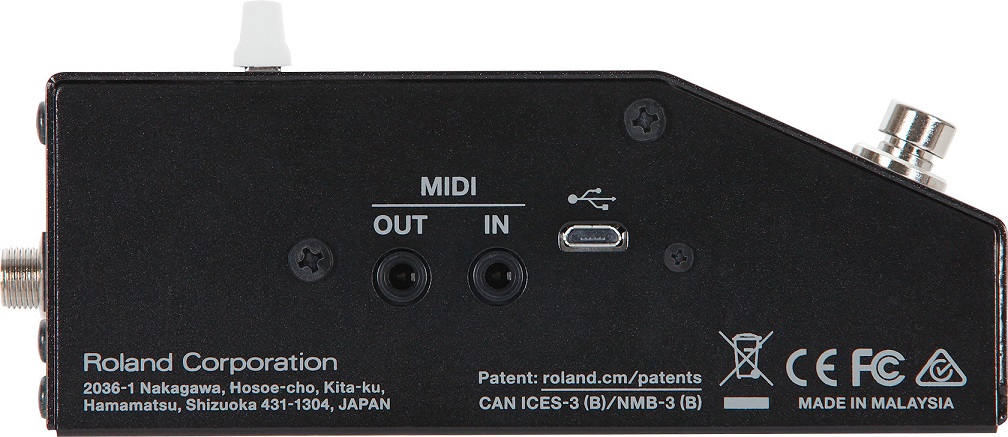

- Connectors: INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type, CTL 1, 2/EXP jack: 1/4-inch TRS phone type, MIDI (IN, OUT) jacks: Stereo miniature phone type, DC IN jack, USB port: USB micro-B type (program update only)
- Power Supply: Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
- Current Draw: 170 mA
- Expected Battery Life Under Continuous Use: Alkaline: Approx. 7 Hours, These figures will vary depending on the actual conditions of use.
- Accessories: Leaflet "USING THE UNIT SAFELY", Alkaline battery (AA, LR6) x 3, Rubber foot x 4
- Size: 101 mm x 138 mm x 60 mm
- Weight: 630 g
|
|
|
