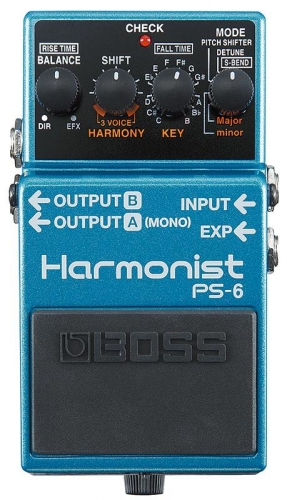

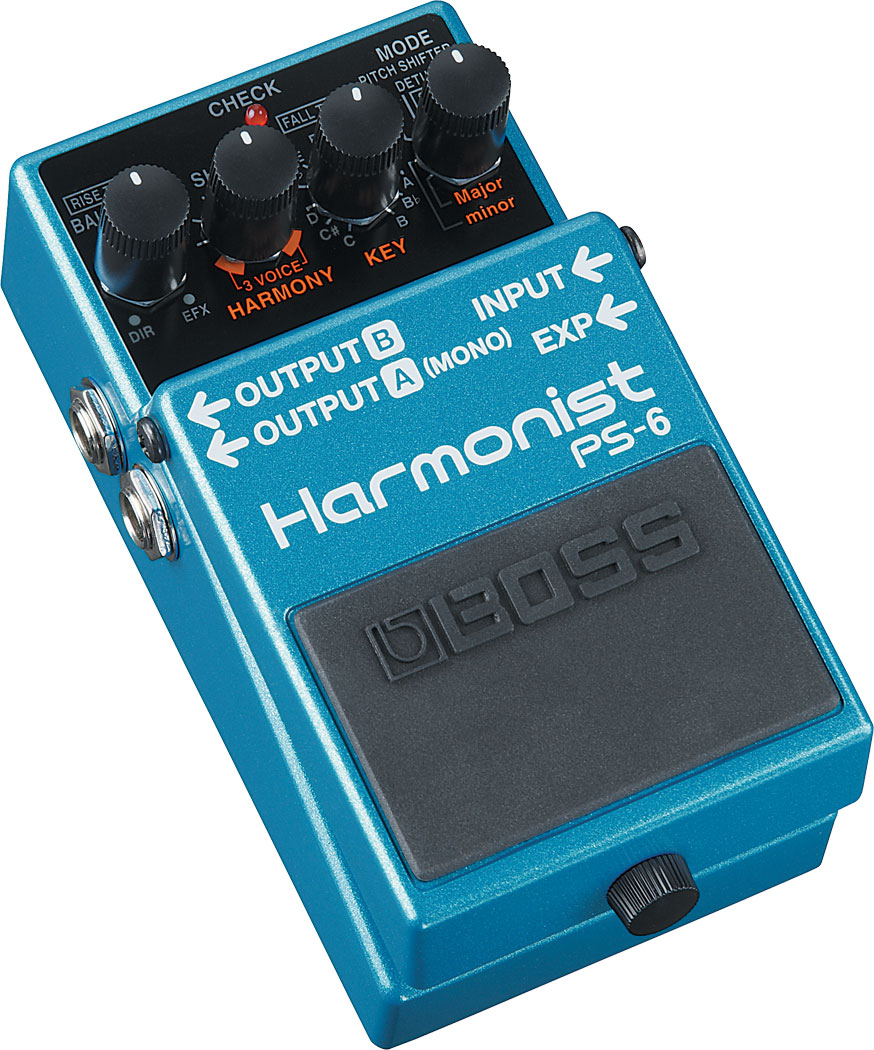

Boss PS 6

Boss PS 6

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass
• Controls:
  • MODE knob
  • KEY/FALL TIME knob
  • SHIFT knob
  • BALANCE/RISE TIME knob
  • Pedal switch
• Indicator: CHECK indicator (Used for indication of check battery)
• Connectors:
  • INPUT jack: 1/4-inch phone type
  • OUTPUT jack A(MONO)/B: 1/4-inch phone type
  • EXP jack: TRS 1/4-inch phone type
  • DC IN jack
• Power Supply: Alkaline battery (9 V, 6LR61), AC adaptor (PSA series: sold separately)
• Current Draw: 65 mA
• Expected battery life under continuous use: Alkaline: Approx. 3 hours
• Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Dry battery (9 V, 6LR61)
• Options (sold separately): AC adaptor: PSA series, Expression pedal: Roland EV-5/BOSS EV-30, FV-500H, FV-500L
• Width: 73 mm
• Depth: 129 mm
• Height: 59 mm
• Weight (including battery): 420 g
