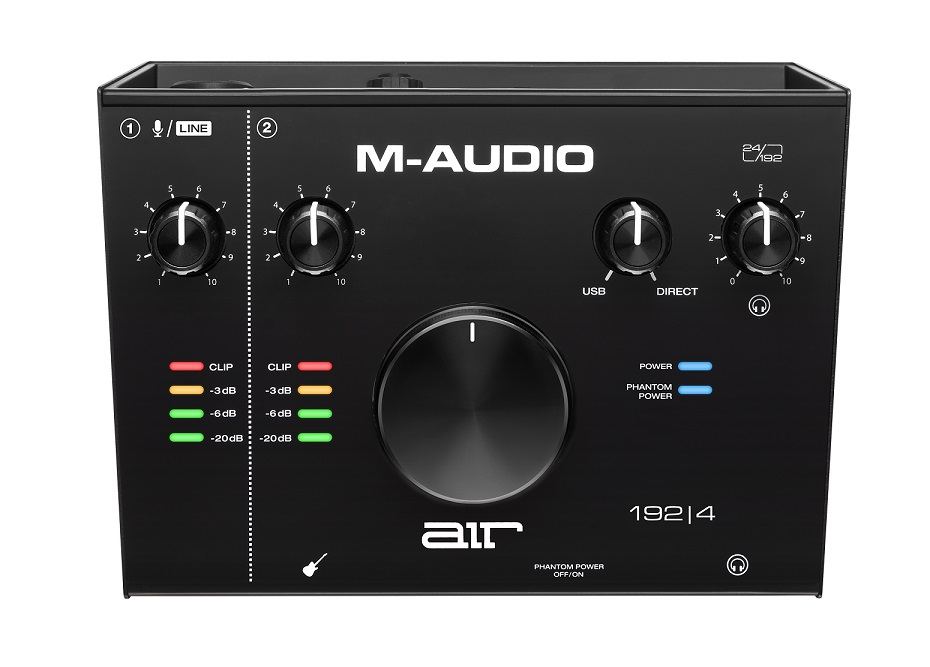

M-Audio AIR 192/4
|
|
|
|
|
|
|
|
|
M-Audio AIR 192/4
- Mic Input 1 (balanced XLR)
- FREQUENCY RESPONSE 20 Hz – 20 kHz (+0.1 dB)
- DYNAMIC RANGE 104 dB (A-weighted)
- SIGNAL-TO-NOISE RATIO 104 dB (+1.0 dBu, A-weighted)
- THD+N 0.003%
- PREAMP EIN -128 dBu (max gain, 150 Ω source, A-weighted)
- MAX INPUT LEVEL +1.5 dBu
- GAIN RANGE 55 dB
- Line Input 1 (balanced 1/4" [6.35 mm] TRS)
- FREQUENCY RESPONSE 20 Hz – 20 kHz (+0.05 dB)
- SIGNAL-TO-NOISE RATIO 101 dB (1 kHz, +4 dBu, A-weighted)
- THD+N 0.003%
- MAX INPUT LEVEL 16 dBu
- GAIN RANGE 55 dB
- Inst Input 2 (unbalanced 1/4" [6.35 mm] TS)
- FREQUENCY RESPONSE 20 Hz – 20 kHz (+0.05 dB)
- DYNAMIC RANGE 100 dB (A-weighted)
- SIGNAL-TO-NOISE RATIO 102 dB (+ 4 dBu, A-weighted)
- THD+N 0.004%
- MAX INPUT LEVEL 6 dBu
- INPUT IMPEDANCE 1 MΩ
- GAIN RANGE 24 dB
- Main Outputs, L and R (balanced, differential 1/4" [6.35 mm] TRS)
- FREQUENCY RESPONSE 20 Hz – 20 kHz (+0.06 dB)
- DYNAMIC RANGE / SIGNAL-TO-NOISE RATIO 102 dB (A-weighted)
- THD+N 0.005%
- MAX OUTPUT LEVEL +7 dBu (1 kHz, -1 dBFS)
- Headphone Output (impedance-balanced 1/4” [6.35 mm] TRS)
- THD+N 0.005%
- OUTPUT IMPEDANCE 10 Ω
- General
- POWER USB-bus-powered
- DIMENSIONS (WIDTH X DEPTH X HEIGHT) 8.0” x 6.0” x 2.76” (20.42 cm x 15.24 cm x 7.0 cm)
- WEIGHT 2.0 lbs. 0.9 kg
