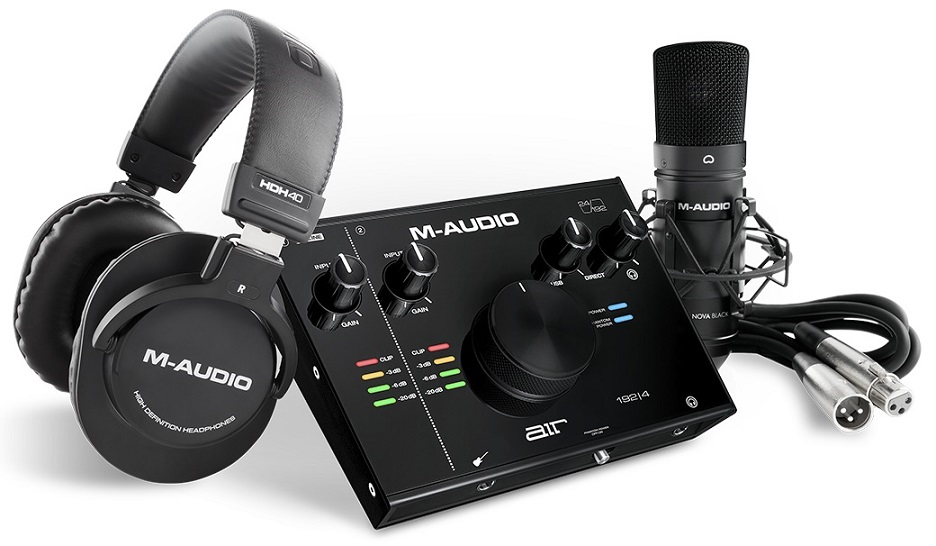

M-Audio AIR 192/4 Vocal Studio Pro
|
|
|
|
|
|
|
|
|
M-Audio AIR 192/4 Vocal Studio Pro
- Minimum System Requirements
- macOS: 10.8 Class Compliant
- PC: Windows 7, Windows Driver
- Standard USB 2.0 or USB-C Port

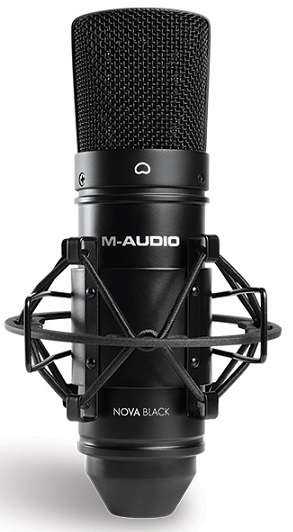

- NOVA Black Microphone
- TYPE Back Electret condenser microphone
- ELEMENT 18 mm pure aluminum diaphragm capsule
- POLAR PATTERN Cardioid
- FREQUENCY RESPONSE 20 Hz – 20 kHz
- SENSITIVITY -38 dB (0 dB = 1 V/Pa @ 1 kHz)
- RATED IMPEDANCE 200Ω
- MAXIMUM SPL 136 dB
- PHANTOM POWER REQUIRED +48 V
- S/N RATIO 77 dB
- CURRENT CONSUMPTION 3 mA
- HDH40 Headphones
- ACOUSTIC DESIGN Dynamic, Closed
- DRIVER 40 mm, neodymium
- FREQUENCY RESPONSE 15 Hz – 22 kHz
- SENSITIVITY 95 dB ±3 dB
- RATED IMPEDANCE 32Ω
- EARPAD Leatherette
- CABLE LENGTH 9.8 ft. / 3 m
- Mic Input 1 (balanced XLR)
- FREQUENCY RESPONSE 20 Hz – 20 kHz (+0.1 dB)
- DYNAMIC RANGE 104 dB (A-weighted)
- SIGNAL-TO-NOISE RATIO 104 dB (+1.0 dBu, A-weighted)
- THD+N 0.003%
- PREAMP EIN -128 dBu (max gain, 150 Ω source, A-weighted)
- MAX INPUT LEVEL +1.5 dBu
- GAIN RANGE 55 dB
- Line Input 1 (balanced 1/4" [6.35 mm] TRS)
- FREQUENCY RESPONSE 20 Hz – 20 kHz (+0.05 dB)
- SIGNAL-TO-NOISE RATIO 101 dB (1 kHz, +4 dBu, A-weighted)
- THD+N 0.003%
- MAX INPUT LEVEL 16 dBu
- GAIN RANGE 55 dB
- Inst Input 2 (unbalanced 1/4" [6.35 mm] TS)
- FREQUENCY RESPONSE 20 Hz – 20 kHz (+0.05 dB)
- DYNAMIC RANGE 100 dB (A-weighted)
- SIGNAL-TO-NOISE RATIO 102 dB (+ 4 dBu, A-weighted)
- THD+N 0.004%
- MAX INPUT LEVEL 6 dBu
- INPUT IMPEDANCE 1 MΩ
- GAIN RANGE 24 dB
- Main Outputs, L and R (impedance-balanced 1/4" [6.35 mm] TRS)
- FREQUENCY RESPONSE 20 Hz – 20 kHz (+0.06 dB)
- DYNAMIC RANGE / SIGNAL-TO-NOISE RATIO 102 dB (A-weighted)
- THD+N 0.005%
- MAX OUTPUT LEVEL +7 dBu (1 kHz, -1 dBFS)
- Headphone Output (impedance-balanced 1/4” [6.35 mm] TRS)
- THD+N 0.005%
- OUTPUT IMPEDANCE 10 Ω
- General
- POWER USB-bus-powered
- DIMENSIONS (WIDTH X DEPTH X HEIGHT) 8.0” x 6.0” x 2.76” (20.42 cm x 15.24 cm x 7.0 cm)
- WEIGHT 2.0 lbs. 0.9 kg
