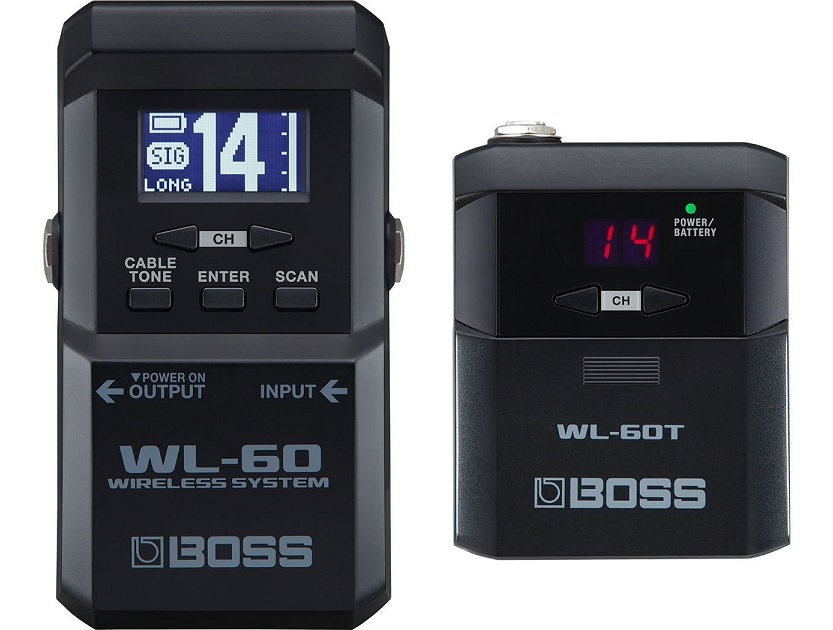

Boss WL-60 Guitar Wireless System

Boss WL60

SPECIFICATIONS (RECEIVER)

• Wireless Format: BOSS proprietary digital audio format
• Wireless carrier frequency: 2.4 GHz
• Compatible Channels: 14 (May vary due to local conditions)
• Transmission Range: 65 feet line-of-sight (May vary due to local conditions)
• Latency: 2.3 ms
• Dynamic Range: 110 dB or greater
• Frequency Response: 20 Hz--20 kHz
• Nominal Input Level: -10 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -10 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Controls: CH button, SCAN button, ENTER button,CABLE TONE button
• Indicators: Graphic LCD 64 x 32 dots
• Connectors:
  • INPUT jack: 1/4-inch phone type
  • OUTPUT jack: 1/4-inch phone type
  • IN jack
  • OUT jack
• Power Supply: Alkaline battery (AA, LR6) x 2, AC adaptor (sold separately)
• Current Draw: 100 mA
• Expected battery life under continuous use: Alkaline battery (AA, LR6): Approximately 7 hours
• Accessories
  • Owner's Manual
  • Leaflet USING THE UNIT SAFELY
  • Transmitter
  • Guitar cable
  • Rubber foot x 4
  • Alkaline battery (AA, LR6) x 2
• Options (sold separately): AC adaptor: PSA-S series, Parallel DC cord: PCS-20A (DC Plug x8)

SIZE AND WEIGHT (RECEIVER)

• • Width: 70 mm
  • Depth: 120 mm
  • Height(excluding rubber foot): 54 mm
  • Height(including rubber foot): 57 mm
  • Weight (excluding battery): 180 g
  • Weight (including battery): 220 g

SPECIFICATIONS (TRANSMITTER (WL-60T))

• Nominal Input Level: -10 dBu (1 M ohm)
• Controls: POWER switch, CH button
• Display: 7 segments, 2 characters (LED)
• Indicator: POWER/BATTERY
• Connectors: INPUT jack: 1/4-inch phone type
• Power Supply: Alkaline battery (AA, LR6) x 2
• Current Draw: 110 mA
• Expected Battery Life Under Continuous Use: Alkaline battery (AA, LR6): Approximately 25 hours

SIZE AND WEIGHT (TRANSMITTER (WL-60T))

• Width: 68 mm
• Depth: 88 mm
• Height (including strap clip): 30 mm
• Weight (including battery): 120 g
