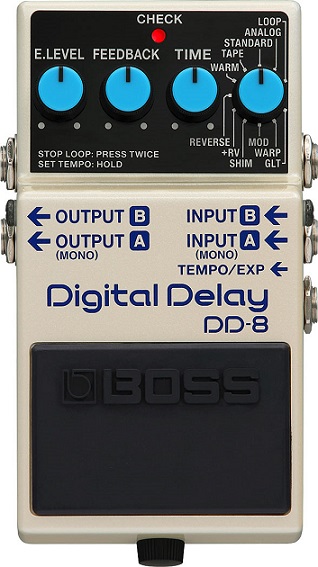

Boss DD-8 Digital Delay
|
|
|
|
|
|
|
|
|
Boss DD-8 Digital Delay
- Nominal Input Level: -20 dBu
- Input Impedance: 1 M ohm
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
- Bypass: Buffered bypass
- Controls:
- MODE knob
- TIME knob
- FEEDBACK knob
- E.LEVEL(Effect Level) knob
- CARRYOVER switch
- Pedal switch
- Indicator: CHECK indicator (Used for indication of check battery)
- Connectors:
- INPUT-A(MONO)/INPUT-B jack: 1/4-inch phone type
- OUTPUT-A(MONO)/OUTPUT-B jack: 1/4-inch phone type
- TEMPO/EXP jack: TRS 1/4-inch phone type
- DC IN jack
- Power Supply:
- Alkaline battery (9 V, 6LR61)
- AC adaptor (PSA series: sold separately)
- Current Draw: 100 mA
- Expected battery life under continuous use: Alkaline: Approx. 3.5 hours
- Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Dry battery (9 V, 6LR61)
- Options (sold separately):
- AC adaptor: PSA series
- Footswitch: FS-5U, FS-6, FS-7
- Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
- Size: 73 x 129 x 59 mm
- Weight: 440 g
|
|
|
