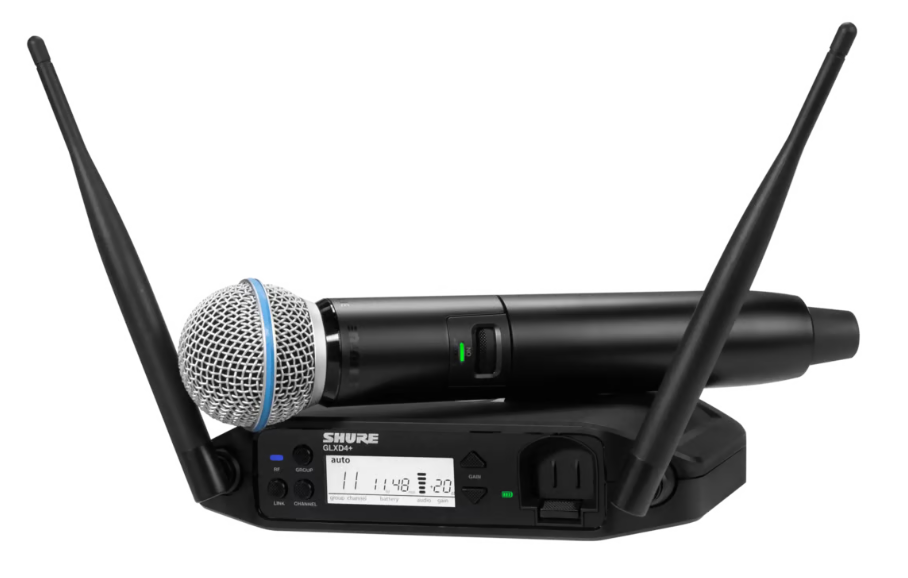

Shure GLXD24+/B58

Shure GLXD24+/B58:

• Receiver GLXD4+
• Transmitter GLX2+
• Microphone Beta58A
• Adapter PS43

Shure GLXD4+:

• Tuning Bandwidth:
  • Z2: 2400 - 2483.5 MHz
  • Z3: 2400 - 2483.5 MHz and 5725 - 5850 MHz
  • Z4: 2400 - 2483.5 MHz and 5725 - 5875 MHz
  • Z5: 2400 - 2483.5 MHz and 5725 - 5825 MHz
• Transmit Mode: Shure proprietary digital
• RF Output Power: 10 mW E.I.R.P. maximum
• Ambient Temperature Range:
  • Charging: 0°C (32°F) to 40°C (104°F)
  • Operating: 0°C (32°F) to 45°C (113°F)
• Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low­impedance output) and the tip of the high impedance 1/4-inch output.
• Audio Frequency Response: 20 Hz – 20 kHz
• Dynamic Range: 122 dB, A-weighted
• RF Sensitivity: -88 dBm, typical
• Total Harmonic Distortion: 0.2%, typical
• Battery Life: Up to 11.5 hours
• Channel Count: Up to 4 typical, 8 optimal, 2.4 GHz only: Up to 4 typical, 5 optimal
• Power Requirements: 14.5 V – 17 V, 600 mA (efficiency level VI power supply)
• Antenna Type: Dual-band ½ Wave Sleeve Dipole, non-removable
• Dimensions:
  • Antenna folded: 7.2 x 4.8 x 1.6 in. (182.82 x 121.97 x 40.3 mm)
  • Antenna opened: 7.2 x 4.8 x 7.3 in. (182.82 x 121.97 x 185.6 mm)
• Weight: 10.9 oz (310 g)
• Housing: PC/ABS
• Spurious Rejection: > 35 dB, typical
• Gain Adjustment Range: -20 to 40 dB, 1 dB increments
• Phantom Power Protection: Yes
