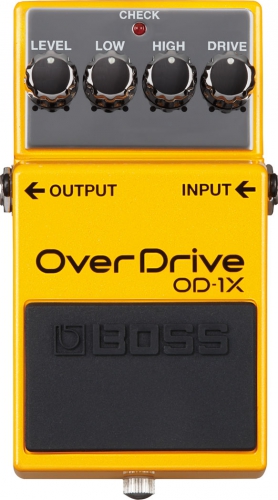

Boss OD-1X

Boss OD-1X

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass
• Controls:
  • Pedal switch
  • LEVEL knob
  • LOW knob
  • HIGH knob
  • DRIVE knob
• Indicator: CHECK indicator (Serves also as battery check indicator)
• Connectors: INPUT jack, OUTPUT jack, AC adaptor jack (DC 9 V)
• Power Supply: Alkaline battery (9V, 6LR61) or AC adaptor (sold separately)
• Current Draw: 65 mA
• Expected battery life under continuous use: Alkaline: Approx. 6 hours
• Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information"), Alkaline battery (9V, 6LR61)
• Option (sold separately): AC adaptor (PSA series)
