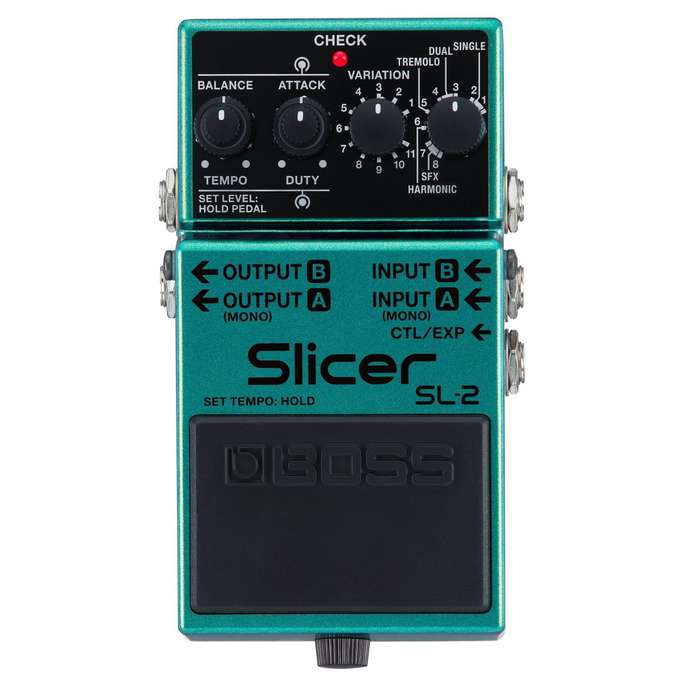

Boss SL-2 Slicer
|
|
|
|
|
|
|
|
|
Boss SL-2 Slicer
- Sample Rate: 48 kHz
- AD Conversion: 24 bits + AF method; AF method (Adaptive Focus method); This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
- DA Conversion: 32 bits
- Patterns: 88
- Nominal Input Level: INPUT A (MONO), INPUT B: -20 dBu
- Maximum Input Level: INPUT A (MONO), INPUT B: +7 dBu
- Input Impedance: INPUT A (MONO), INPUT B: 1 MΩ
- Nominal Output Level: OUTPUT A (MONO), OUTPUT B: -20 dBu
- Maximum Output Level: OUTPUT A (MONO), OUTPUT B: +7 dBu
- Output Impedance: OUTPUT A (MONO), OUTPUT B: 1 kΩ
- Recommended Load Impedance: OUTPUT A (MONO), OUTPUT B: 10 kΩ or greater
- Bypass: Buffered bypass
- Controls:
- TYPE knob
- VARIATION knob
- ATTACK knob
- DUTY knob
- TEMPO knob
- BALANCE knob
- Pedal switch
- Indicator: CHECK indicator (Used for indication of Tempo and check battery)
- Connectors: INPUT A (MONO) jack, INPUT B jack, OUTPUT A (MONO) jack, OUTPUT B jack: 1/4-inch phone type, CTL/EXP jack: 1/4-inch TRS phone type, DC IN jack, MIDI IN jack: Stereo miniature phone type, USB port: USB B
- Power Supply: Alkaline battery (9 V, 6LR61 or 6LF22, commercially available), AC adaptor (PSA series: sold separately)
- Current Draw: 95 mA
- Expected battery life under continuous use: Alkaline: Approx. 2.5 hours
- Accessories: Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
- Dry battery (9 V, 6LR61 or 6LF22)
- Options (sold separately): AC adaptor: PSA series, Footswitch: FS-5U Dual footswitch: FS-6, FS-7, Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5, TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
- Size: 73 x 129 x 59 mm
- Weight: 0,45 kg
|
|
|
