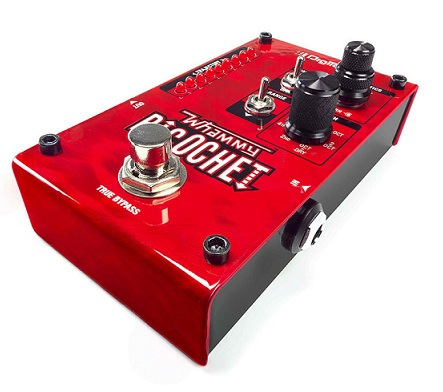

Digitech Whammy Ricochet
|
|
|
|
|
|
|
|
|
Digitech Whammy Ricochet

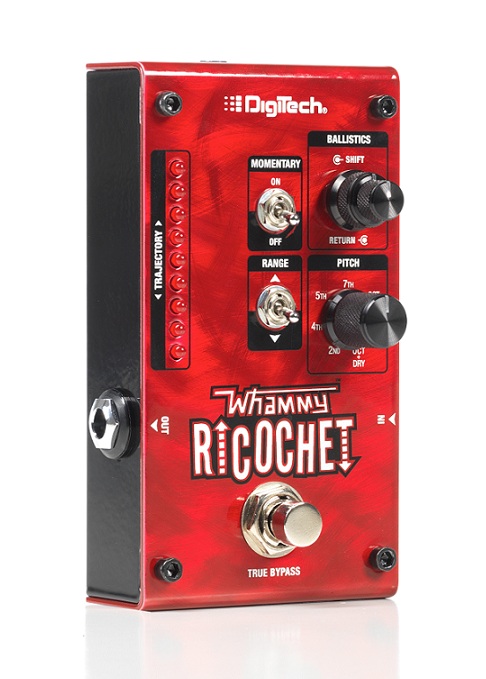

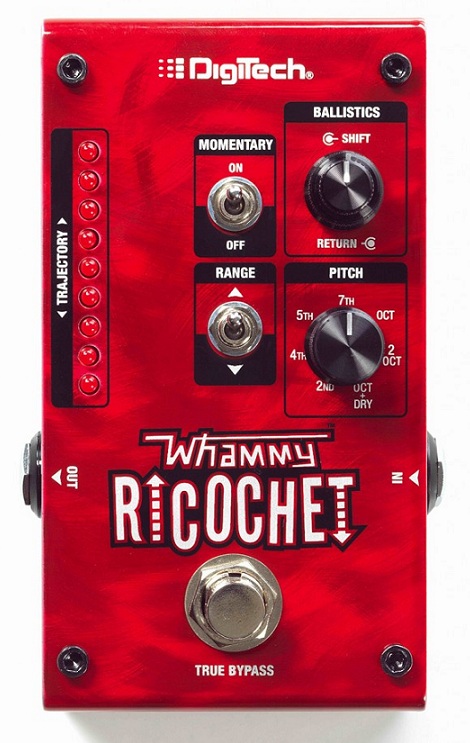

- Controls:
- Ballistics Control
- Pitch Control
- Range Switch
- Momentary Switch
- Effect On/Off
- Sample rate: 44.1 kHz in classic mode, 22 kHz in chords mode
- Frequency response: 20 Hz–16 kHz (classic mode), 20 Hz–11 kHz (chords mode)
- Signal to noise ratio: > -106dB (A weighted); ref = max level, 22 kHz bandwidth
- A/D/A converter: 24-bit
- THD: 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
- Power consumption: 2.1 Watts (235 mA typical @ 9 VDC)

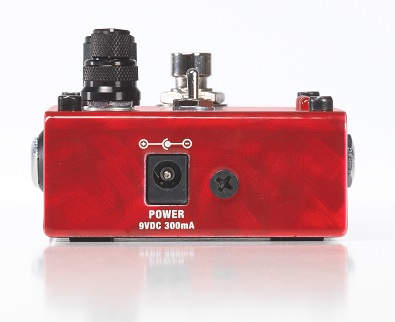

- Power requirements: 9V DC External Adapter (sold separately)
- Power supply: PS0913DC-01 (US, JA, EU); PS0913DC-02 (AU, UK)
- Power adapter output: 9V DC 1.3A
- Length: 4.75" (122mm)
- Width: 2.875" (76mm)
- Height: 1.75" (47mm)
- Weight: 0.8 lbs.
- Output: 1/4" unbalanced (Tip-Sleeve)
- Max output level: +10 dBu
- Output impedance: 1 kΩ (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)
- Input: 1/4" unbalanced (Tip-Sleeve)
- Max input level: +5 dBu
- Input impedance: 1 MΩ (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)
|
|
|
