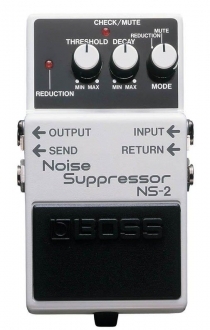

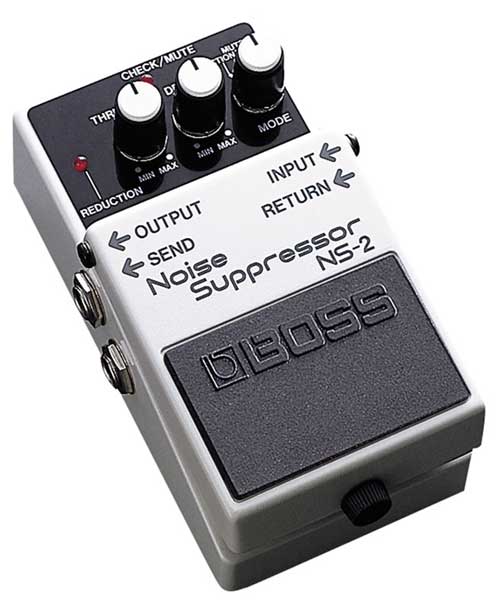

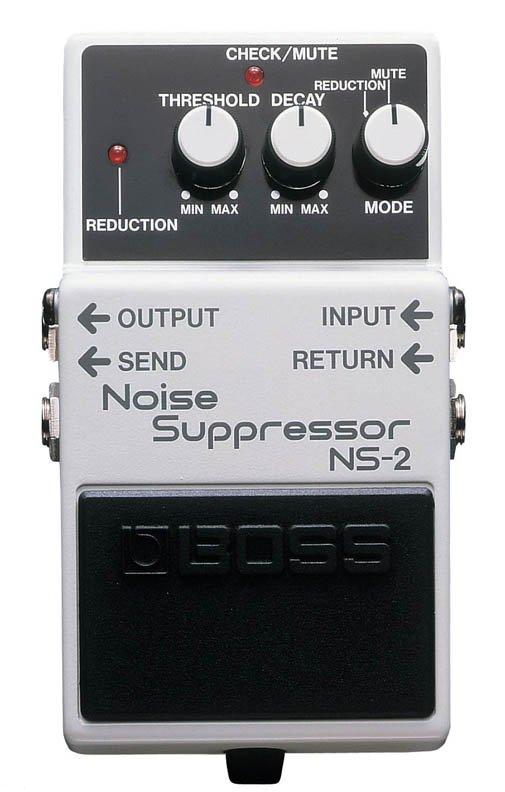

Boss NS2
|
|
|
|
|
|
|
|
|
Boss NS2
- Nominal Input Level: -20 dBu
- Input Impedance: 1 M ohm
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
- Bypass: Buffered bypass
- Controls: MODE selector switch, DECAY knob, THRESHOLD knob, Pedal switch
- Indicator: CHECK/MUTE indicator (Used for indication of check battery), REDUCTION indicator
- Connectors:
- INPUT jack: 1/4-inch phone type
- OUTPUT jack: 1/4-inch phone type
- SEND jack: 1/4-inch phone type
- RETURN jack: 1/4-inch phone type
- DC IN jack
- 9V DC OUT jack
- Power Supply: Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61), AC adaptor (PSA series: sold separately)
- Current Draw: 25 mA
- Expected battery life under continuous use: Carbon: Approx. 11 hours, Alkaline: Approx. 24.5 hours
- Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Carbon-zinc battery (9 V, 6F22)
- Options (sold separately): AC adaptor: PSA series, Parallel DC Cord: PCS-20A
- Size: 73 x 129 x 59 mm
- Weight: 415g
|
|
|
